Ring mesh

alphamesh ring mesh stainless steel

alphamesh ring 7.0 Edelstahl

alphamesh7.0

Material: stainless steel
Ring Diameter: 7.00 mm
Wire Gauge: 0.70 mm
Weight: c. 2.2 kg/m²
Tensile Strength: 23 kN/m
Open Area: c. 60 %

alphamesh ring 12.0 Edelstahl

alphamesh12.0

Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

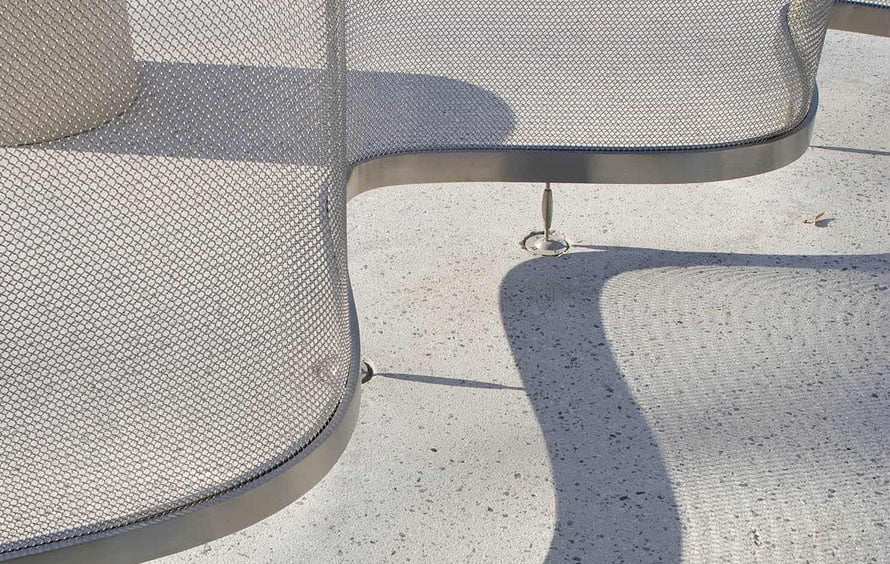

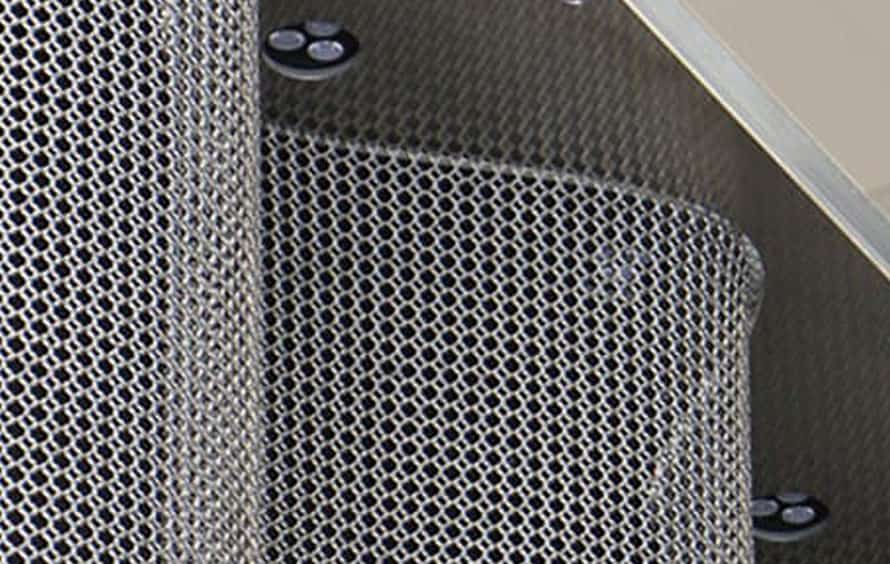

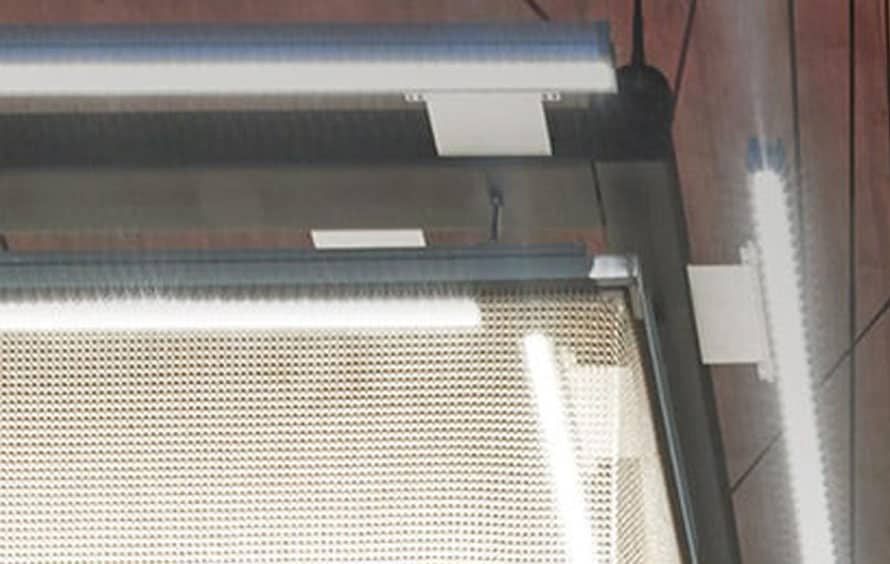

alphamesh ring Installation

attachment and installation

alphamesh ring mesh stainless steel in color

alphamesh12.0 RAL1003

RAL 1003 signal yellow
Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

alphamesh12.0 RAL3001

RAL 3001 signal red
Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

alphamesh12.0 RAL4001

RAL 4001 red purple
Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

alphamesh12.0 RAL5010

RAL 5010 gentian blue
Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

alphamesh12.0 RAL5021

RAL 5021 water blue
Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

alphamesh12.0 RAL6001

RAL 6001 emerald green
Material: stainless steel
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.06 kg/m²
Tensile Strength: 53 kN/m
Open Area: c. 63 %

alphamesh ring mesh bronze

alphamesh ring 7.0 Bronze

alphamesh7.0

Material: bronze
Ring Diameter: 7.00 mm
Wire Gauge: 0.70 mm
Weight: c. 2.49 kg/m²
Tensile Strength: 15 kN/m
Open Area: c. 60 %

alphamesh ring 12.0 Bronze

alphamesh12.0

Material: bronze
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.45 kg/m²
Tensile Strength: 33 kN/m
Open Area: c. 63 %

alphamesh ring Installation

attachment and installation

alphamesh ring mesh bicolor stainless steel | bronze

alphamesh ing 12.0 Bicolor

alphamesh12.0

Material: stainless steel
bronze
Ring Diameter: 12.00 mm
Wire Gauge: 1.10 mm
Weight: c. 3.26 kg/m²
Tensile Strength: 33 kN/m
Open Area: c. 63 %

alphamesh ring Installation

attachment and installation

ring mesh projects

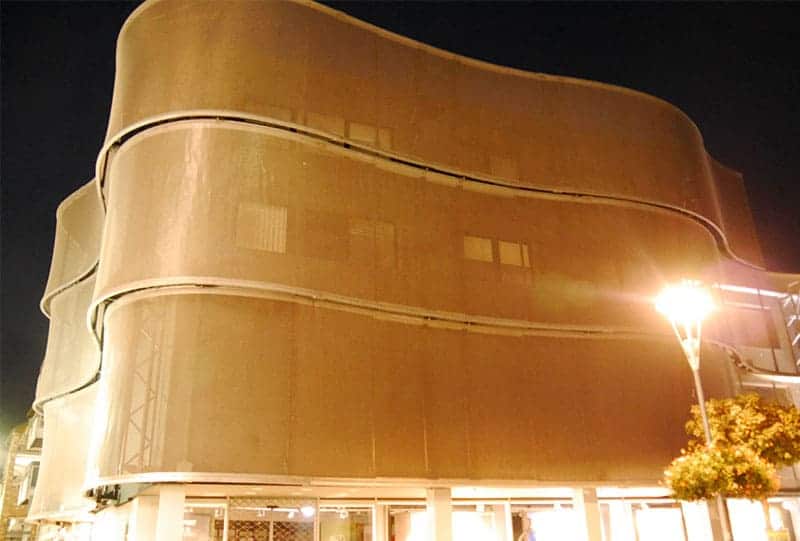

Taunus Sports Store | Germany alphamesh 12.0 stainless steel

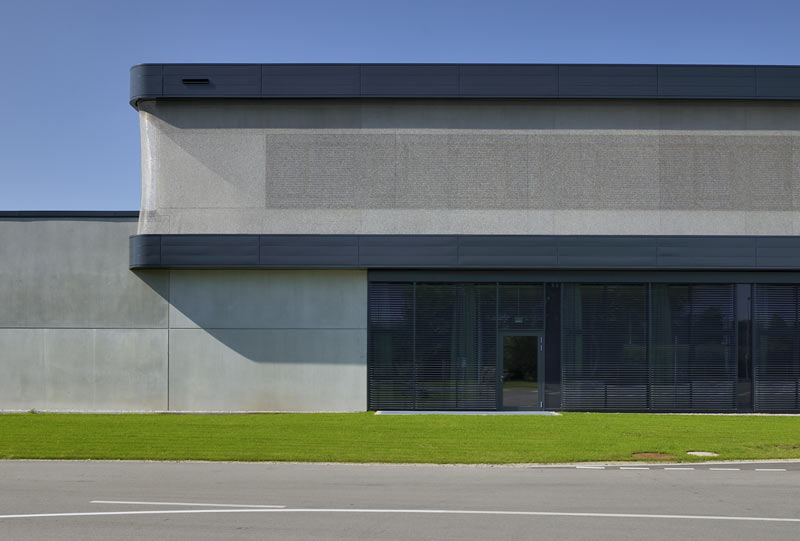

Hilti Academy | Germany alphamesh 12.0 stainless steel

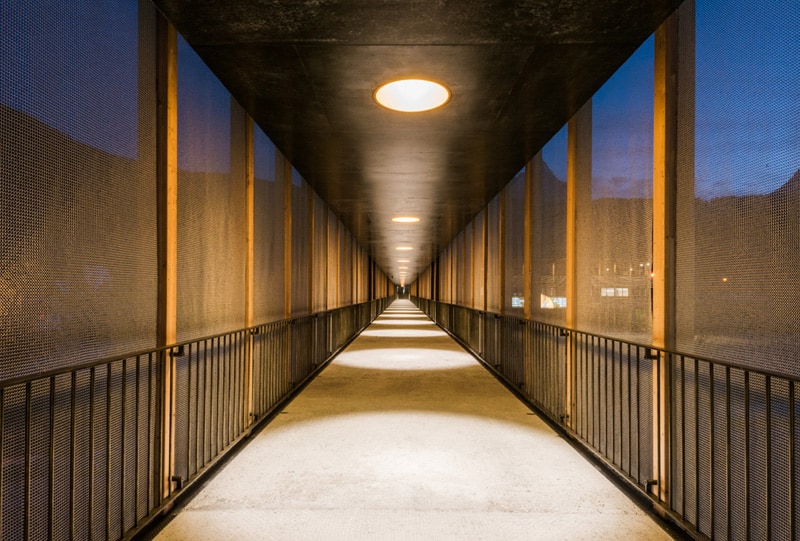

Bridge Vierschach | Italy alphamesh 12.0 stainless steel

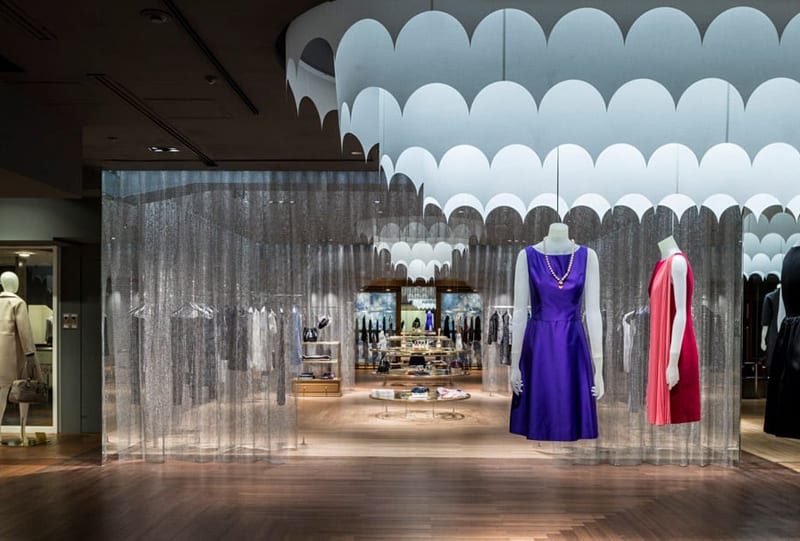

Seibu Shibuya | Tokyo | Japan alphamesh 12.0 stainless steel

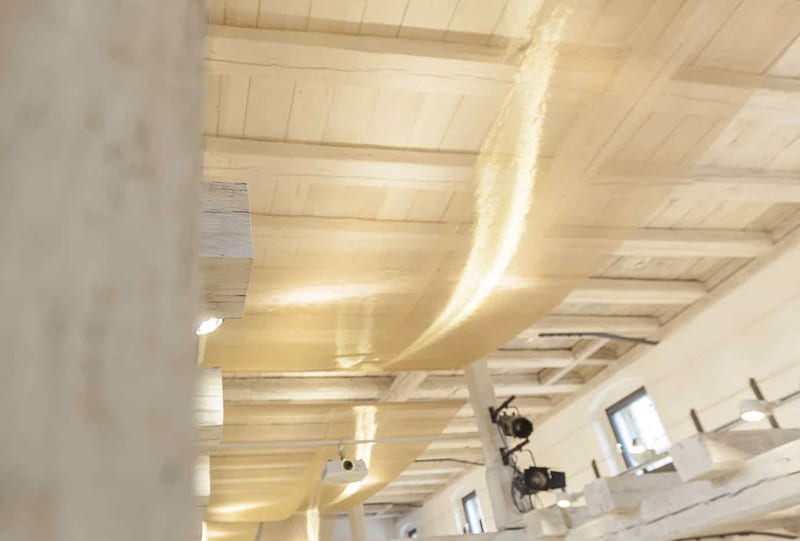

Zehntscheune | Schlüsselfeld | Germany alphamesh fabrics antigua

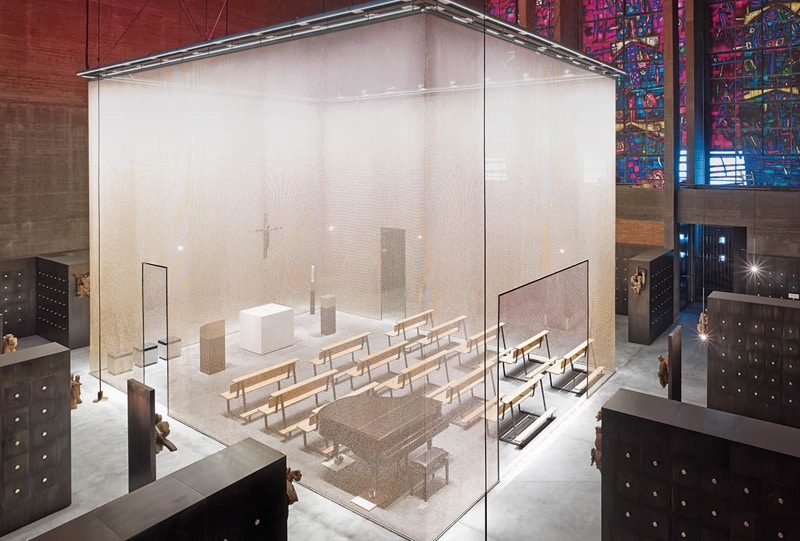

Columbarium | Cologne | Germany alphamesh 12.0 bronze

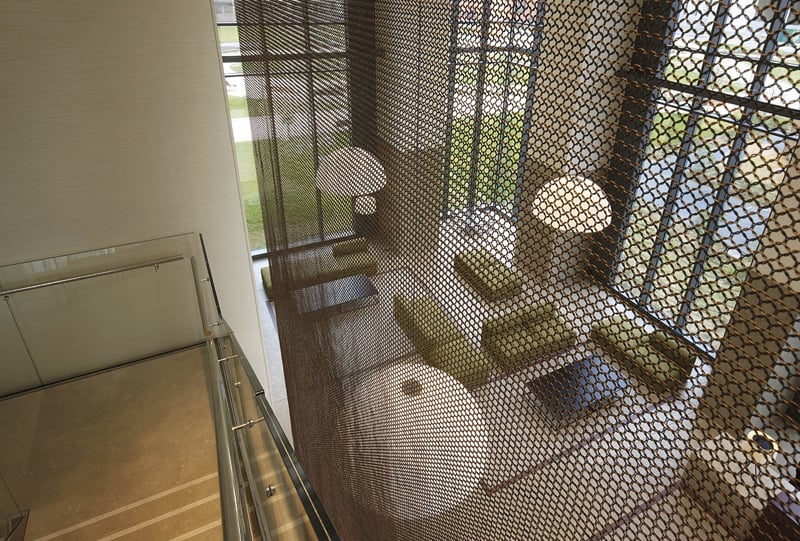

Bosco Verticale | Milano | Italiy alphamesh 12.0 bronze

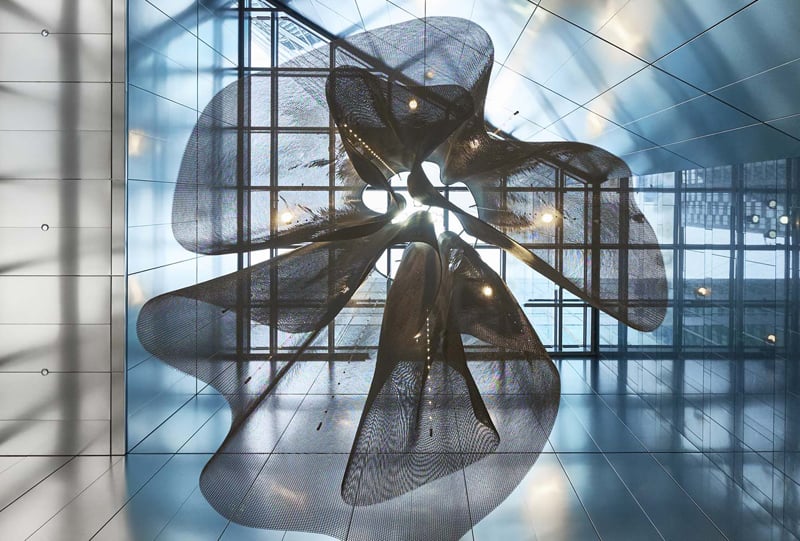

Hyatt Center 71 South Wacker | Chicago | USA alphamesh 12.0 stainless steel

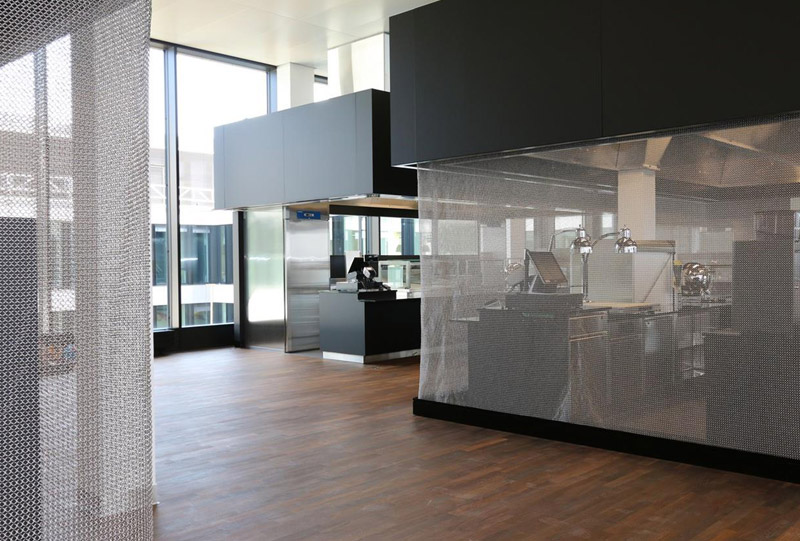

Night closure | Bellikon | Switzerland alphamesh 12.0 stainless steel
